Solar is a great alternative.

The 10w Solar Panel is a strong module

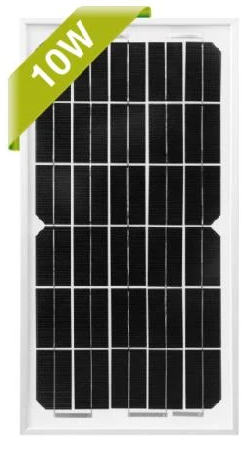

10w Solar Panel10w Solar Panel.

The 10w Solar Panel to be a high-efficiency  and rigid module. NewPowa distributes this 12 Volt Monocrystalline panel and the color is black.

The manufacturer uses high-performance cells that they encapsulate in EVA (ethylene-vinyl acetate).

EVA (ethyl vinyl acetate) is available in thin sheets.

The manufacturers insert these thin sheets between the solar cells. Also between the module and the top surface. They also use it between the module and the back surface.

They use heavy-duty anodized aluminum frames for the solar panels. That provides for high-quality panel rigidity.

One can use these solar panels for many years. You will experience no faults, defects, or operating failures.

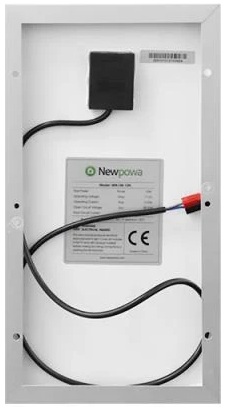

Junction box and 3ft pigtailJunction box and 3ft "pigtail".

It comes with a superb warranty for up to 25 years.

It comes with a junction box and a pair of 3 feet MC4 cables(pigtail) pre-attached to the solar module.

The module also comes with a 5ft extension cable and a set of Anderson connectors.

You can click here to buy.

The 10w solar panel specs

Electrical

Maximum power(Pmax):                                                                                                   10W.

Voltage at Pmax (Vmp):                                                                                                 17.00V.

Current at Pmax (Imp):                                                                                                    3.52A.

Open-circuit voltage (Voc):                                                                                          20.23V.

 Short-circuit current (Isc):                                                                                             0.62A.

Operating temperature:                                                                                  -40°C to 85°C.

Power tolerance:                                                                                                                 ± 3%.

Mechanical

Dimension:                                           365 x 195 x 23mm (14.37 x 7.68 x 0.91 inches).

Weight:                                                                                                             1kg(2.2 pounds).

Applications

RV;

 Marine;

 Boat;

Off Grid;

Solar Tracker;

Charging the battery on gate opener;

Power remote security cameras;

Chicken coop door opening system;

Keeping a small back-up/emergency battery trickle charged;

Make use of a charge controller and maintain a car battery.

  The output of the 10w solar panel

On a sunny day with 7 hours of sunlight in mid-summer, you can bargain for the generation of about 70 watts.

That is 7 x 10 watt = 70 watt.

One can use this for bringing power to small electronics while away from the grid.

Advantages

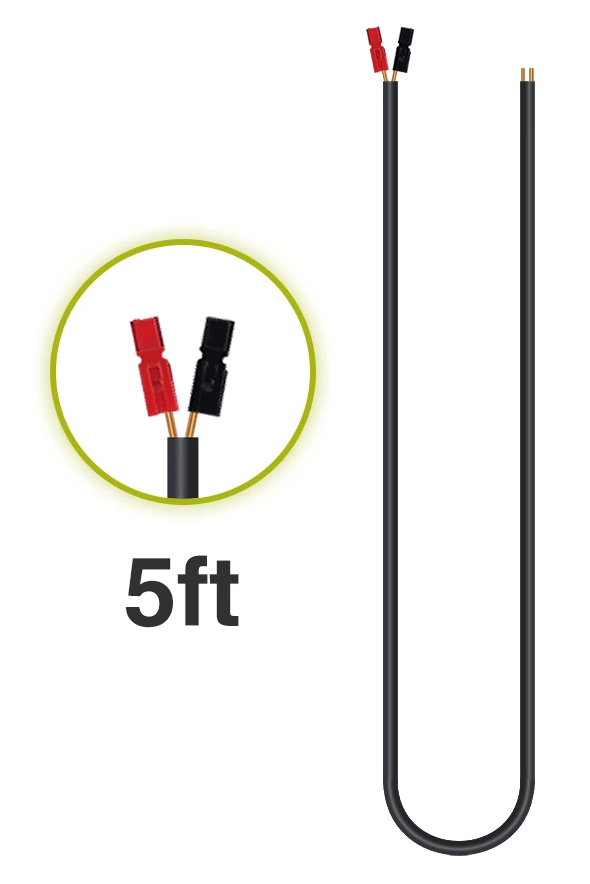

5Ft Extension Cable5Ft Extension Cable.
  • The 10w solar panel is sturdy and well built.

  • It produces well even when conditions are less than optimal.
  • The module comes with a good long usable pigtail lead and extension cable.

  • High performance cells encapsulated in EVA (ethylene-vinyl-acetate).

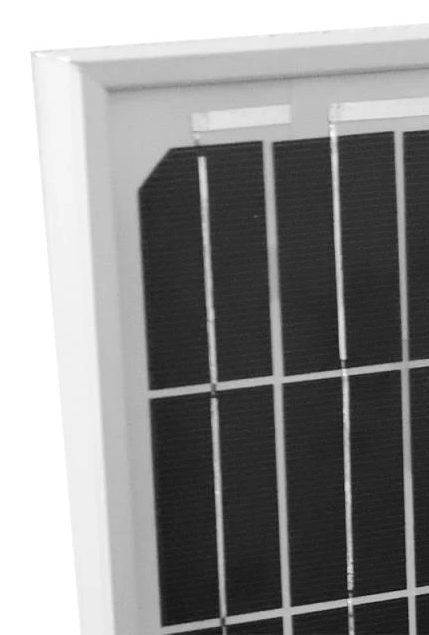

Strong FrameStrong Frame.
  • The heavy-duty anodized frame is well built with pre-drilled holes for easy mounting

  • It withstands high winds (2400Pa), hail and snow load (5400Pa)

  • The modules comes with high-transparent, low iron tempered glass

  • A durable TPT back sheet helps to dissipate heat. This is  for better panel performance and a much longer lifespan.

Disadvantage

The package does not include a charge controller or mounting hardware. We have to buy it seperate.

With the existing mounting holes it can be a bit tricky to install. It would be better if the mounting holes were a bit different.

To mention

  • The panel itself is a decent small panel of good quality. It produces a great charge.

  • We have to use it with a controller, because peak power is 20 volt.

  • With the pre-attached wires it is easy to set up.

  • The strong aluminum frames around the solar make it easy to attach mounting brackets.

Warranty

There are 2-year limited materials and workmanship warranty for the 10w solar panel.

It includes a 10 year/90% power output warranty.

It guarantees an 80% efficiency rate for 25 years.

To Conclude


The 10w solar panel is sturdy, and it generates reliable power.

You can click here to buy.
