Solar is a great alternative.

The 150 watt solar panel to be  used for many applications

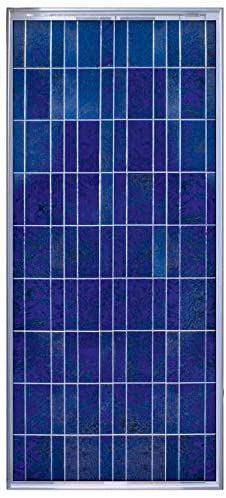

Samlex 150 Watt Polycrystalline Solar PanelSamlex 150 Watt Polycrystalline Solar Panel.

The 150 watt solar panel from Samlex America helps you to produce your own energy.  This can be your first step to becoming an independent electricity consumer.

Free yourself from your monthly energy bill. It is time to stop operating an energy-dependent home.

If you invest in the 150 watt solar module you will be moving in the right direction. This can be the beginning of large savings and big freedom.

It is easy to set up and start producing free and clean power from the sun within a matter of seconds.

The Samlex Amer 150 Watt 12 volt polycrystalline panel uses high-efficiency solar cells. It maintains high module conversion efficiency and provides long-term output reliability.

You can use it for residential and commercial purposes.

Apply the Samlex Amer 150 Watt solar panel for off-grid or on the grid applications.

Use it for many off-grid necessities.

Click here to buy.

They call it the Samlex Amer SSP-150 watt solar panel.

On a sunny day with 7 hours of sunlight in mid-summer, you can bargain for the generation of about 890 watts.

That is 7 x 150 watt = 1050 watt.

Now you allow for a loss of 15% and you get 1050 X 85/100 = 892.5 watts.

Ignore the 2.5 and you get a fair 890 watt per 7 hour day.

The size of the panel is 26 x 58.03 x 1.39 inches

The attached cables are 20 inches long.

The 150 watt solar panel comes with an IRP65 rated junction box. Also with MC4 compatible connectors and built-in blocking diodes. The diodes are to prevent reverse current flow.

The module comes with;

20 Inch cables with connectors20 Inch cables with connectors.

A polycrystalline solar panel with an efficiency of 15.42%.

One pair of 20-inch solar connecting wires.

Mounting brackets and hardware.

You can buy a set of branch connectors when expanding on an existing installation.

The module does not come with a charge controller. It is compatible with PWM or MPPT controllers.

You can click here to buy a Samlex solar charge controller.

Or you can click here to buy the complete 150 watt Samlex Amer solar panel kit.

 If you purchase a product through a link on this page, I do get a small   percentage  of commission at no extra cost to you.

The 150 watt solar panel specs

Electrical

Maximum Power:                                                                                                               150W.

Maximum System Voltage:                                                                            600V DC (UL).

Open-Circuit Voltage (Voc):                                                                                        22.68V.

Optimum Operating Voltage (Vmp):                                                                      18.38V.

Optimum Operating Current (Imp):                                                                          8.16A.

Short-Circuit Current (Isc):                                                                                            8.82A.

Module efficiency                                                                                                          15.42%.

Junction BOX:                                                            IP-65 rated with 2 Bypass Diodes.

Cable:                                                                                                                             UV Rated.

Connectors:                                                                                                  MC4 Compatible.

Type of cells:                                                                                                   Polycrystalline.

Series fuse rating:                                                                                                                15A.

Mechanical

Weight:                                                                                                                 12 Kg / 26.4 lb.

Dimensions:                                      660 x 1474 x 35.2 mm / 26 x 58.03 x 1.39 inches.

Applications:

Recreational Vehicles;

Off-grid/mobile solar systems;

Power supply for remote equipment;

Monitoring systems for the oil & gas industry;

Traffic, security, environment, and other remote monitoring and signaling systems;

Water pumping systems;

Rural electrification;

Small home power systems;

12V and 24V battery charging system;

Other industrial and consumer applications.

Advantages of the 150 watt solar panel

  • The efficiency of the polycrystalline solar cells is over 15%. That generates high energy per square meter.

  • The 150 watt solar panel comes with a low profile panel design. --They reduce height and weight. It reduces manufacturing cost and it relieves the inconvenience of installation.--

  • Tempered glass construction and the anodized aluminum frame cater for longevity. Even in harsh weather conditions.

  • The Junction BOX is IP-65 rated. It also comes with 2 Bypass Diodes to avoid the effects of partial shading.

  • The connectors are MC4 compatible which makes the system flexible and easy to use.
Industry-leading hardwareIndustry-leading hardware.
  • Samlex provides industry-leading well nuts that can expand. This is to prevent unwanted penetration of moisture.

  • The Samlex cables come with UV protection to combat weather decay.

Disadvantage

Locations that are hard to reach are subject to extra shipping fees. The seller will let you know before processing your order if they need extra fees.

Warranty

The 150 watt solar panel comes with a 12 year 90% power output warranty as well as a 25 year 80% power output warranty.

The wiring and mounting hardware come with a 5-year warranty.

In conclusion

The 150 watt solar panel with the low profile panel design is worth the money and effort.

Click here to buy.

 If you purchase a product through a link on this page, I do get a small   percentage  of commission at no extra cost to you.
