This 30 watts solar panel charges smaller batteries

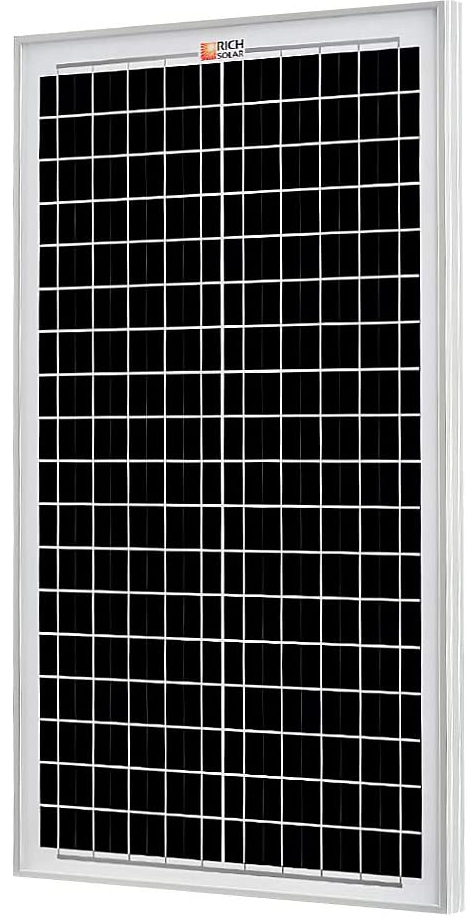

30 Watts Solar Panel30 Watts Solar Panel.

The 30 watts solar panel does low amp charging as well as many other off-grid functions. These rigid and strong solar panels are from RICH SOLAR.

This is called the RICHSOLAR 30 watts 12 Volt Monocrystalline PV Module. It is a Highly-Efficient Mono panel.

It does not come with mounting hardware or a charge controller.

It comes with a waterproof and IP65 rated junction box. As well as a pair of 12AWG cables 24 inches long.

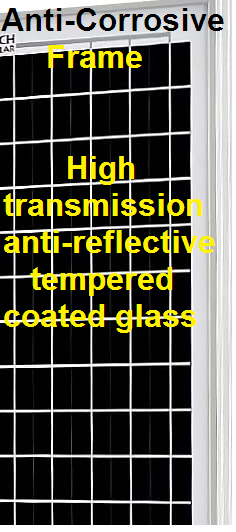

Strong frameStrong frame.

The 30 watts solar panel is build with high-quality tempered glass. The strong frame is for high-quality panel rigidity.

Use faultless and for many years ahead.

It has a warranty for up to 25 years.

In mid-summer, with a 7 hour day you can bargain for the generation of about 178 Watt.(7 x 30  = 210 Watts.)

Take a loss of 15% and you get 210 times 85/100 = 178, 5 Watts

Throw away the 0, 5 to get 178 Watts.

It will work well for low amps systems or for trickle charging.

Click to see a similar panel.

 If you purchase a product through a link on this page, I do get a small   percentage  of commission at no extra cost to you.

The 30 watts solar panel specifications

Electric

Maximum Wattage (Pmax):                                                                  30W.

Maximum Power Volts(Vmp):                                                              18.2V.

Maximum Power Amps (Imp):                                                             1.65A.

Open Circuit Volts(Voc):                                                                      22.2V.

Short Circuit Ampere(Isc):                                                                   1.82A.

Maximum System Voltages (Vmax):                                              600VDC.

Power tolerance:                                                            plus and minus 3%.

Type:                                                                                    Monocrystalline.

DimensionsDimensions.

                                 Mecahanical

Dimensions:                                                  24.6 x 14.2 x 1.0 in.

Mass:                                                                                   5.3 lbs.

                                    Application

                                                     Self powered off-grid system;

                                                     Gate battery;

                                                         RVs;

Boast;

Commercial and power station properties;

Batteries on monitoring systems;

Camps in the mountain;

Dry camping;

Courtyard lights;

Watering systems;

 Aluminum Frame that is Corrosion-Resistant

The sturdy aluminum frame protects against extreme weather conditions

The 30 watts solar panel comes with holes already drilled in the frame that makes installation a breeze.

The module has high transmission anti-reflective tempered coated glass.

It is certified to withstand challenging environmental conditions.

Advantages

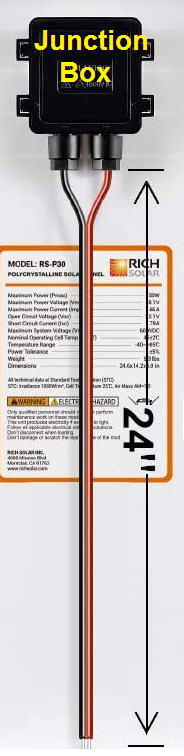

IP65 rated waterproof junction box with built-in diodes and 24-inch cable.Junction box.
  • The solar panel has 13.4% conversion efficiency. It  performance well in low light conditions. Operation during cloudy days is very satisfactory.

  • IP65 rated junction box, and  MC4 connectors that are are IP67 Rated..

  • Installation and handling is easy for many different applications.

  • The panel can operate with on or off-grid inverters.

  • It is aesthetically quite  pleasing.

  • The 30 watts solar panel is cost-effective.

  • This panel is compact and easy to set up, but with enough power.

  • These Monocrystalline panels will give you the most efficiency per space.

Disadvantages of the 30 watts solar panel

The only downside is there's no mounting hardware.

Also, you have to buy a charge controller for voltage regulation.

To Mention

Best is to not even let a single small shade hit the solar panel. It has a high negative impact.

When buying delivery is quick and the solar module is easy to use.

Warranty

The 30 watts solar panel comes with 5 years of materials and workmanship warranty.

Also a 25 year’s 80% output power.

In a conclusion

The RICH SOLAR 30 watts solar panel Monocrystalline Module performs without a flaw.

Buying it will ensure a good investment providing cheap electricity for years to come.

Click here for a similar solar module.
