Solar is a great alternative.

The 30W solar panel to be multifunctional

30W Solar Panel.

The 30w solar panel is for battery charging and to do many off-grid functions. Acopower manufactures these rigid and strong solar modules.

They call it the  Acopower Mono Solar Panel. It is a High-Efficiency Monocrystalline module.

The package does not include a charge controller or mounting hardware.

The efficiency of the mono panel is 12.12% and the color is black.

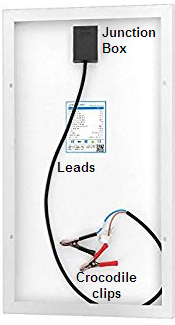

It comes with a junction box and a pair of cables attached to the solar module. As well as a pair of alligator clips for easy and quick connection to your battery.

The manufacturer uses high-performance cells that they encapsulate in EVA (ethylene-vinyl acetate).

EVA (ethyl vinyl acetate) is available in thin sheets. The manufacturers insert these thin sheets between the solar cells. Also between the module and the top surface. They also use it between the module and the back surface.

They use anodized aluminum frames for solar panels. That provides for high-quality panel rigidity.

One can use these solar panels for many years. You will experience no faults, defects or operating failures.

It comes with a superb warranty for up to 25 years.

On a sunny day with 7 hours of sunlight in mid-summer, you can bargain for the generation of about 178 Watt.

That is 7 x 30 watt = 210 Watt.

Now you allow for a loss of 15% and you get 210 X 85/100 = 178,5 Watt

Ignore the 0,5 and you get a fair 178 Watt.

The 30W Solar Module Specs

Electrical

Maximum Power:

Open-Circuit Voltage (Voc):

Optimum Operating Voltage (Vmp):

Optimum Operating Current (Imp):

Short-Circuit Current (Isc):


30W.

21.2V.

18V.

1.67A.

1.18A.

Mechanical

Weight:

Dimensions:

Warranty

  • The 30W solar panel comes with a 5 years workshop warranty and 25-year 85% output warranty.

Applications

  • Use it for camping in the mountains or a trip to the beach.

  • You can use it for RVs, dry camp and many more.
  • One can also use it for use for courtyard lighting.
  • You can also use it for garden watering.
  • It is also handy for courtyard lighting.
  • Then it is good for small household lighting systems and street lighting.
  • One can also use it for other portable solar power.


6lbs.

23.62X16.14X1.18 Inches.

Advantages

  • The 30w solar modules are cost-effective and Acopower provides free professional engineering services...
  • The modules are compact and easy to set up, but with enough power.
  • The solar module realizes high module conversion efficiency.
  • The 30W solar panel withstands high winds of up to 2400 Pa and heavy snow loads up to 5400 Pa.
  • It uses a lightweight anodized aluminum frame. It is a good construction with various holes punched for easy mounting.
  • The module comes with reinforced safety glass. The glass is anti- reflective and coated with a thickness of 3, 2 mm. It ensures a long panel life in harsh weather conditions.
  • The panels are aesthetically pleasing and do not draw attention as solar panels.
  • The satin/semi-gloss finish of the panel merges in well with a variety of colors.
  • The panels work well during cloudy days and still produce a satisfactory output.
  • The module comes with good solid and ready to use leads and connectors

Disadvantages

  • The only downside is there's no mounting hardware.
  • No blocking diodes in the junction box can lead to drainage of your battery.

Facts worth mentioning about the 30w solar panel

It is good practice to read labels, warnings, and directions before you use the product.

People say the modules are very impressive and well made.

The manufacturer ensures fast shipping and buyers seldom experience transporting problems.

To conclude

The 30w solar panel is a great choice. It is not the strongest solar system, but it works well even under cloudy conditions.

It provides the type of performance that people want in their specific situation.
