Solar is a great alternative.

The 50 watt solar panel kit is a high performer

50 Watt solar panel kit50 Watt solar panel kit.

The 50 watt solar panel kit delivers with a high efficiency. NewPowa distributes these strong and long lasting solar modules.

They call it the NEWPOWA 50 Watt 12V Monocrystalline Solar Panel kit. It is a High-Efficiency Mono Module.

The panel does not come with mounting brackets. You have to buy compatible mounting brackets extra. (NPB-UZ, NPB-0113, NPB-100P.)

It comes with a 10 Ampere PWM Pulse Width Modulation) charge controller. This is to control the charge and discharge.

If you want to power an AC load, you need to buy an inverter as well. This is to change the DC power into AC power which is 110 or 220 volts.

It comes with a junction box and a pair of 3 feet coiled solar cables with Mc4 connectors.

They pre-attach the cable to the junction box.

The manufacturer also provides a 6ft extension cable. This is to connect the 50-watt solar panel to the controller.

This is a high-efficiency solar panel and the color is black.

The manufacturer uses high-performance cells that they encapsulate in EVA (ethylene-vinyl acetate).

EVA (ethyl vinyl acetate) is available in thin sheets. The manufacturers insert these thin sheets between the solar cells. Also between the module and the top surface. They also use it between the module and the back surface.

They use heavy-duty anodized aluminum frames for solar panels. That provides for high-quality panel rigidity.

One can use these solar panels for many years. You will experience no faults, defects, or operating failures.

It comes with a superb warranty for up to 25 years.

On a sunny day with 7 hours of sunlight in mid-summer, you can bargain for the generation of about 350 watts.

That is 7 x 50 watt = 350 watt.

Now you allow for a loss of 15% and you get 350 X 85/100 = 297.5 Watt.

Now you can round it and you get a fair 300 watt.

The 50-watt solar panel is best for low-amp systems. It is good for bringing power to smaller electronics away from the grid.

You can click here to buy.

The 50 watt solar panel kit specs

Electrical

Maximum power (Pmax):                                                                                                      50W.

Voltage at Pmax (Vmp):                                                                                                        17.0V.

Current at Pmax (Imp):                                                                                                        2.94A.

Open-circuit voltage (Voc):                                                                                               20.23V.

Short-circuit current (Isc):                                                                                                  3.12A.

Operating temperature:                                                                                       -40°C to 85°C.

Power tolerance:                                                                                                                      ± 3%.

SizeSize.

                                             Mechanical

Size:                                         23.07 X 19.88 X 1.18inch.

Item Weight:                                                9.02 pounds.

                                            Applications

                                                                                  RV;

Boat;

Home;

Off Grid Systems;

Small electronics while away from the grid;

Charging both vehicle and deep cycle batteries;

Solar pool heater;

Works great for 12v pump;

Chicken coop;

Pickup camper;

RV;

Fences;

Gate opener;

Many other small applications.

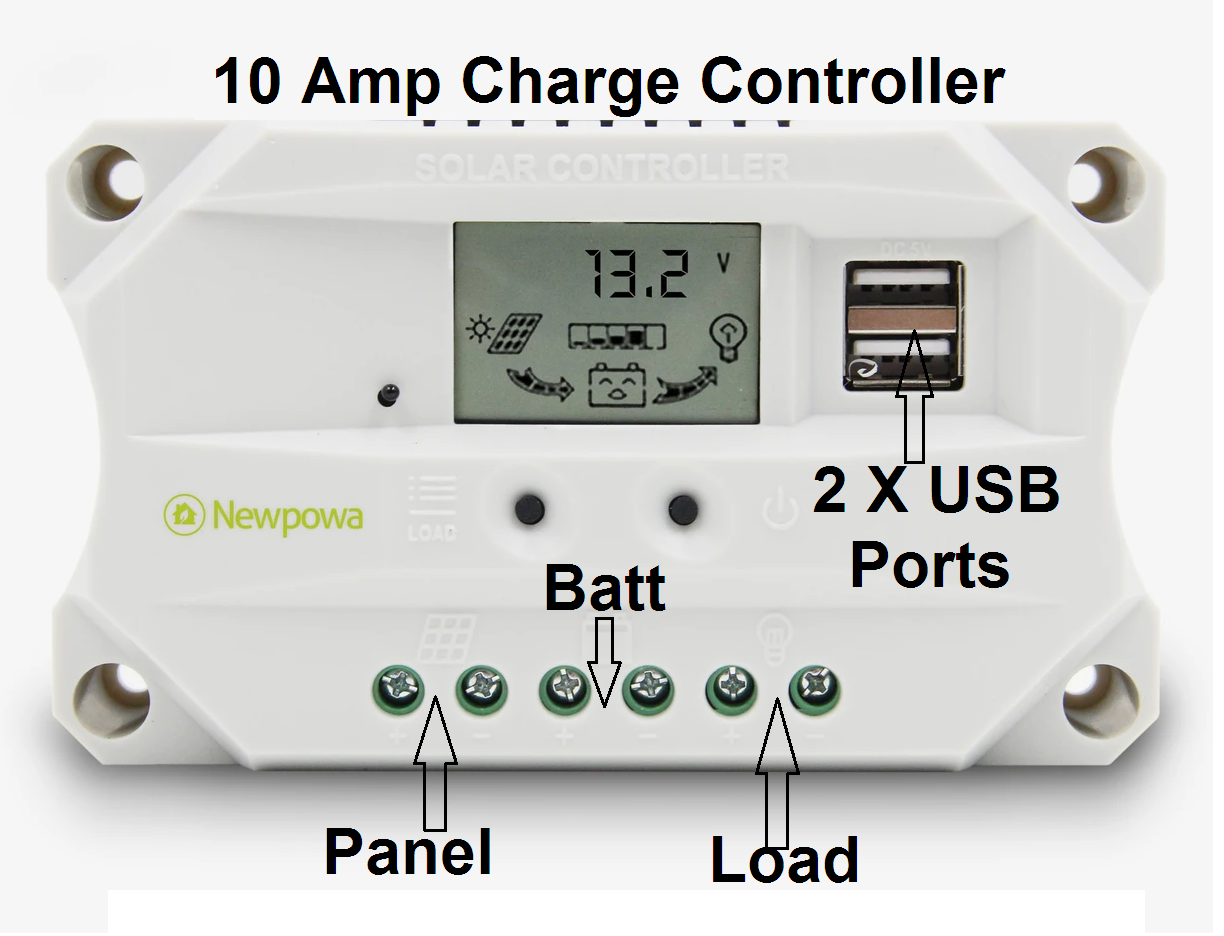

Charge Controller for the 50 watt solar panel kit

Charge ControllerCharge Controller.
  • The 50 watt solar panel kit comes with a 10A Amp intelligent solar charge controller.

  • The controller operates with automatic 12V/24V identification. It means if your battery and your panel are 24v, this charge controller is suitable for it.

  • It has an LCD screen with an easy button operation.

  • The controller houses a 12/24 volt output as well as a dual 5v/1 Ampere USB port.

  • The charger comes with automatic temperature compensation, as well as adjustable charge-discharge parameters.

Charge controller specifications

Rated voltage:                                                                                                                    12/24 volt.

USB ports X 2:                                                                                                                      5V/1 Amp.

Rated Current:                                                                                                                          10Amp.

Maximum PV Voltage:                                                                                                                <50V.

Float charge voltage:                                                                                                      3.8V/27.6V.

Load disconnection at:                                                                                                10.8V/21.6V.

Load reconnection at:                                                                                                  12.6V/25.2V.

The Corrosion-Resistant Aluminum Frame

The solar module comes with a heavy-duty anodized frame.

Sturdy frame with pre-drilled holesSturdy frame with pre-drilled holes.

The sturdy frame has pre-drilled holes for easy mounting.

With the rugged design, it is possible to withstand high winds (2400Pa), hail, and heavy snow loads of up to 5400Pa.

They manufacture the module with high-transparent, low iron tempered glass.

A durable TPT back sheet helps to dissipate heat. This is to ensure better panel performance and lifespan.

Advantages

  • This is a high efficiency 50 Watt 12V Monocrystalline Solar panel.

  • Cabling is of good quality and the correct size for effective operation.

  • The MC4 connectors work well and adding extension cables becomes easy.

  • The 50 watt solar panel kit with charge controller is super easy to install and intuitive to use.

  • The PWM charge controller operates with 4 stages. It is adaptable to various types of batteries.

  • NewPowa offers free shipping for all domestic orders. They will ship your order within 1-2 days after clearance of payment.

  • It has a sturdy construction and is easy to install and set into operation.
Junction box with neatly coiled wiresJunction box with neatly coiled wires.
  • The pre-attached 3ft wire to the junction box ensures ease of operation. As well as the MC4 connectors.

  • The connectors on the end fit perfectly in standard MC4 connectors and the wires are good thick high-quality conductors...

  • It is possible to buy compatible mounting brackets.

  • The 50-watt solar panel can produce a fair amount of power. Even and under less favorable conditions.

Disadvantages of the 50 watt solar panel kit

Some people were complaining that they do not get max output when using the panels. We must remember though that ideal condition is mid-summer. Also when the sun shines perpendicular to the panel.

The real output varies depending on where you stay and what season it is.

Other people feel it would be better to include mounting brackets. Then you can opt whether you want a solar panel with or without brackets.

With brackets, they can increase the price.

To Mention

This is a great product. Shipping is fast and installation is quick and easy.

Warranty

50 Watt solar panel;

It has a 2-year limited material and workmanship warranty.

Also a 10 year 90% output warranty as well as a 25 year 80% output warranty.

Controller;

The PWM charge controller has a 2-year limited material and workmanship warranty.

In a conclusion


The pricing is great. Buying the 50-watt solar panel kit will ensure happy operating years. Without any worries.

This is while your smaller electronics operate with free electricity.

You can click here to buy.
