The 70 watt solar panel kit is ready to be  charging batteries

75 Watt Solar Panel75 Watt Solar Panel.

This 70 watt solar panel kit is good to be operating as a PV generator.

The module also comes with a USB 5V output for phones and other USB devices.

Together with the controller, you can use it for battery charging.

It is a portable solar power kit. Use it as a battery maintainer to keep batteries in a tip top condition.

This Monocrystalline portable solar module is from Acopower . It comes with 2 X 35-watt solar panels. This is a suitcase system. It comes with a carry handle, is portable, easy to set up and requires limited space when in transport.

The Monocrystalline cells have a good conversion efficiency of up to twenty five%.

The two panels can fold together with velcro tabs to be holding them in position.

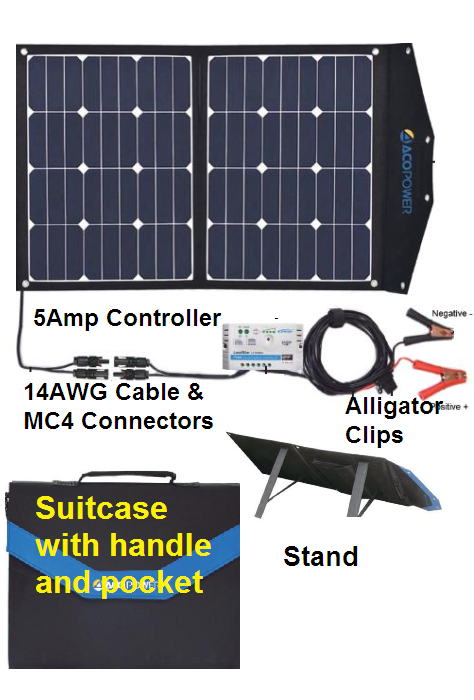

75 Watt Solar Panel Kit75 Watt Solar Kit.

The 70 watt solar panel kit contains a;

Manual.

Crocodile clamps.

Cabling.

Connectors.(MC4 )

Five Ampere PWM charge controller, incuding LED indicators.

A fuse.

Stands you can adjust, also a suitcase that comes with handle and a pocket.

The weight of the 70 watt portable solar kit is 3.8kg (8.4lbs).

It has a thickness of  o.2 inch. The size is 39.2 *  22 inches when you open it.

The folded size is 0.59 inch thick * 22 * 15.7 inches.

The 70 watt solar panel kit specs

Electrical

Max power(Pmax):                                                                                                                  70W.

Volt at Pmax (Vmp):                                                                                                                  18V.

Ampere at Pmax (Imp):                                                                                                          3.8A.

Open-circuit volt (Voc):                                                                                                           21V.

Short-circuit amps (Isc):                                                                                                       4.1A.

Operate temperature:                                                                                    -40°C up to 85°C.

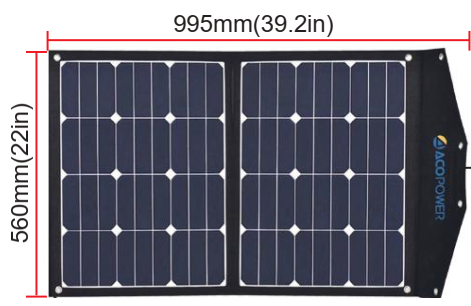

UnfoldedUnfolded.

Output tolerance:                                                                                                            is   ± 3%.

                             Mechanical

Unfold:                       39.2 * 22 * 0.2(inches).

                           (995mm * 560mm * 4mm.)

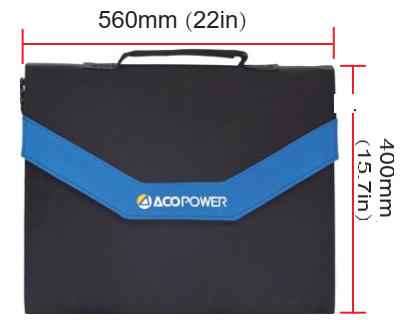

FoldedFolded.

Folded:                    22X 15.7 X 0.59(inches).

                               50mm X 400mm X 15mm.

Mass:                     3.8kilogram / 8.4 pound.


                                               Apps

Car-camping adventures;

Popup trailer;

Dry camp;

RV;

Ham radio;

Charge your  batteries, marine batteries, also other 12V portable lead acid and lithium batteries;

It also charges solar generators;

(The recommendation is to use ACOPOWER 400wh and 220wh Solar Generators.)

Use it as a solar panel kit or only as a solar panel.

The Charge Controller

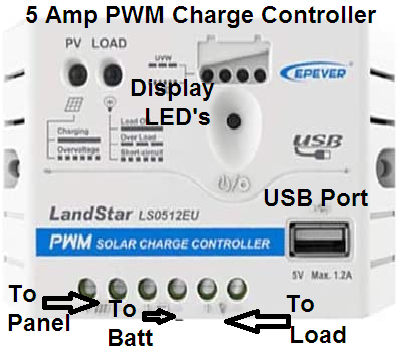

5 Amp PWM Charge Controller5 Amp PWM Charge Controller.

This 70 watt solar panel kit has a 5A pre-installed PWM solar charger controller.

This charge controller is to safe guard and protect the batteries during charging.

Use the controller when you want to charge 12V batteries. You can make use of the crocodile clips.

When charging  a solar generator with a built-in charger use the connectors(MC4's). You can just plug them into the cables and it will be charging.

You can  charge a solar generator and a 12V battery simultaneously.

Also the controller has a 5 volts 1.2 Ampere USB port for smaller appliances.

The controller as well as the USB port will not respond before you connect it to the battery.

You can use a 14AWG extension cable before the charge controller if you have to. Acopower is the seller of this cable.

Order in which to make the connection

We have to connect the battery, then  load and last the 70 watt portable solar module.

When disconnecting it is panel, load, and then battery.

The 5 Ampere controller stats

Working volt:                                                                                                                           12Volt.

Working Amp:                                                                                                                        5 Amps.

USB  Port:                                                                                                                5Volt/1.2 Amps.

Operating Mode:                                                                                Pulse width modulation.

Mass:                                                                                                                                15.6 ounces.

IP Rating:                                                                                             No, this is not waterproof.

Operating the 70 watt solar panel kit

With the pre-installed wires and stands it is easy and very quick to set up...

Go to a  sunny area, without obstacles to block the sun.

Unfold the  panels. Face the sun and it will  start producing a power output.

Adjust the solar panel to get maximum sunlight during the whole day for most power output. You can use the kickstands to direct properly.

Connect the positive and negative leads as prescribed.

Read the safety instructions before putting the 70 watt foldable solar panel kit into operation.

See that battery clip connection is done properly. This is to avoid any short circuits.

Remember obstacles that cover the surface of the 70 watt solar panel kit reduce  output.

To clean surface of the 70 watt solar panel kit

Clean to be efficientClean to be efficient.

Dust and dirt can some times cover the surface of  solar panels. Remove it, it can decrease efficiency.

Now you can clean using a soft brush. Remove the remaining dust and dirt with a damp cloth.

Advantages

  • This 70 watt solar panel kit has a conversion efficiency of up to 25%.

  • The module is thin and lightweight.

  • This is a good solar kit with great customer service from Acopower.

  • This 70 watt  solar panel kit is a multi-purpose module. It operates many different devices.

  • The solar module comes with fair outdoor durability. It comes with industrial-strength PET polymer lamination. This is handy article, and it can last for many years.

  • With this portable solar panel, you can bring quick charging anywhere where there is sunshine.

  • The fabric and cell surface is waterproof for outdoor usage.

  • The manufacturer uses Velcro design to keep the panels closed up.

  • With the 2 standing legs and pre-installed wires setting up for max power output, is quick and easy.

  • The case includes a handy pocket to hold accessories.

  • The 120 Watt foldable solar panel is light, compact, easy to handle, and easy to carry.

  • The charger has LED’s that are indicative and easy to understand.

  • With the MC4 connectors, it becomes very easy to add extension cables.

  • The carry case with handle is an added bonus.

Disadvantages of the 70 watt solar panel kit

It is good to have a USB charge port, but it will only work when you connect to a battery.

Some people suggest Acopower to change the LED color from blue to red. Seeing the lights will be so much easier then, no matter how bright it is outside.

To Mention

  • Compared to similar solar modules the 70 watt solar panel kit is of high quality.

  • The kit continues producing power even when partly covered.

  • This is a good panel, setup is straightforward, it works every time and it is a sturdy module.

  • The kit is light and easy to carry and the fold out legs are a nice added feature.

  • The module is small and easy to store out of the way, when not in use.

  • Remember it will not charge a battery that is bad or low on charge, but it is a good battery maintainer.

  • Remember to do your load calculations, to get the right size of the solar kit before you buy it.

Warranty

The solar panel itself comes with an 18-months workmanship warranty. As well as a 25-year 85% output warranty.

The controller comes with a 1-year warranty.

In a conclusion

The 70 watt solar panel kit is flexible. You can use it with a variety of devices.

It is well built and a definite plus if you are looking for a portable solar module.
