Solar is a great alternative.

10 Watt solar panel to ensure many operating hours

10 Watt Solar Panel

The 10 Watt Solar Panel from Eco-Worthy maintains your 12-volt battery. You will have a trouble-free operation for a variety of applications.

Your battery will always have a full load.

The 10 Watt solar module kit also includes a 3 amp PWM (pulse width modulation) charge, controller.

Proper maintenance of the battery ensures a much longer lifespan.

The charge controller protects the battery from any surges.

 As well as overcharging.

The polycrystalline solar module acts as a clean source of energy. By making use of it you will reduce your energy bill while you control the energy from the sun.

The portable 10 watt solar panel cells come with an efficiency of 17%.

The 10 watt solar panel kit comes with;

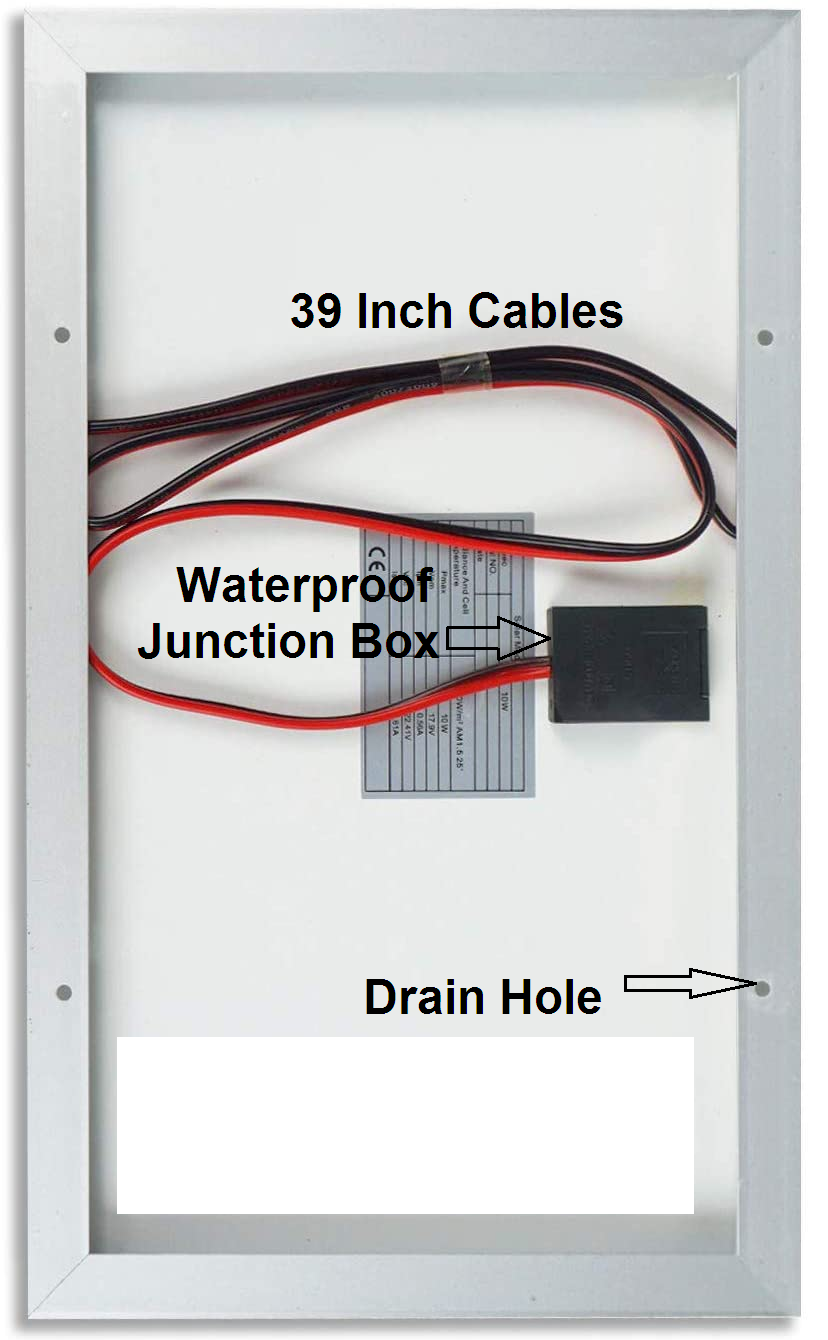

Back of Panel

One polycrystalline 10W Solar Panel with 39 inches MC4 solar cable at the back. As well as a waterproof junction box.

Handy drain holes at the back ensure rainwater drains away easy.

One 3 amp PWM (pulse width modulation) charge controller.

78 Inch extension cable with insulated alligator clips for connecting to the battery.

You can click here to buy.

 If you purchase a product through a link on this page, I do get a small   percentage  of commission at no extra cost to you.

How does the 10 Watt Solar Panel Work?

The ECO-WORTHY 10W 12V solar panel is portable & waterproof. The polycrystalline solar panel is ready to generate cheap energy.

Direct it to the sun and it is in operation.

Always remember to get peak wattage the sun must shine perpendicular to the solar panel.

The sun will do the job and the green LED will show when charging. It indicates when finish and ready to use.

If you now have a 5 hour period of sunlight per day the solar panel will produce 5 x 10 = 50 watt per day.

Not enough to charge a battery, but more than enough to maintain it.

10 Watt Solar Panel Specs

Electrical

Maximum Power:                                   10W (for 3-5Ah battery)

Open-Circuit Voltage (Voc):                    20.6V

Optimum Operating Voltage (Vmp):          17.3V

Optimum Operating Current (Imp):             0.58A

Short-Circuit Current (Isc):                               0.69A

Mechanical

Dimensions                             337x204x18 mm (13.3*8.06*0.72inch)

Weight                                     0.85kgs (1.88lbs)

Frame:                                     Heavy duty aluminum

Warranty

A water-proof solar panel with a long-lasting aluminum frame provides over 20 years of lifespan.

Power guarantee of 90% within 10 years and 80% within 25 years.

Applications

You can use the 10 watt solar panel to maintain the charge on 12-volt batteries.

Camping,

Picnic,

Gate opener,

Boat battery,

Winch battery,

RVs,

 cabins,

Motor home

 homes,

 back-up and more.

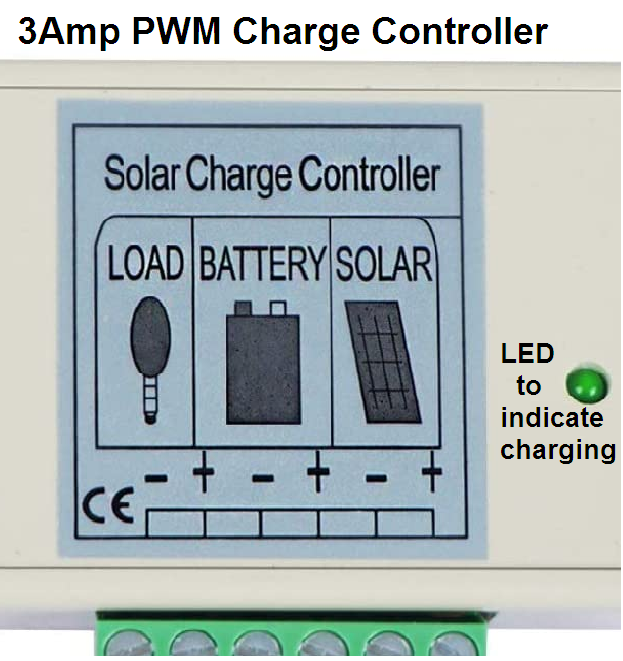

Charge controller ensures that your battery always charges correct and safe.

When Connecting

Connect the 3 Amp controller to the battery. Then you connect the controller to the 10 watt solar panel. Then connect the controller to the load.

When Disconnecting

Disconnect the load from the charge controller. Then you disconnect the solar panel and the controller. Then the charge controller and the battery.

Advantages

  • The 10 watt solar panel works well on cloudy days. It has a temperature range of -40to +80

  • They manufacture the kit from durable ABS plastic. It is weatherproof and can withstand extreme weather conditions.

  • Corrosion-resistant aluminum frame for extended outdoor use.

  • It comes with handy drain holes at the back. This is to ensure rainwater drains away without causing any damage.

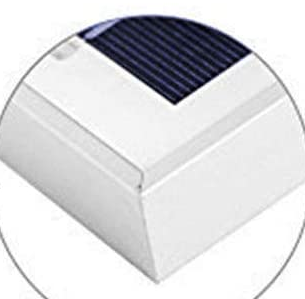

Sturdy Frame
  • The sturdy and durable aluminum frame ensures extra protection against unwanted weather conditions.

  • The panels can withstand high winds up to 2400Pa as well as snow loads up to 5400Pa.

  • The module will produce maintenance-free for many years. You only have to clean the surface when dirt collects on it.

  • The included charge controller ensures that your battery always charges correct and safe.

  • The 10 watt solar panel kit is easy to assemble and to set it up. It comes with handy adapters which makes it easy and safe to handle.

  • The pre-cut holes ensure easy installation.

  • The solar modules come with a TPT back sheet and a  tempered glass front. This is to ensure the greatest protection against harsh weather conditions.

  • The junction box is waterproof. A built-in diode prevents the discharge of batteries under no-load conditions.

Disadvantages

The charge controller is not waterproof. Keep it in a dry and well-ventilated area.

The charge controller is very basic and some people upgrade to a better option.

To Mention

  • If you want something for maintaining a 12-volt battery this is the panel to buy.

  • It will keep your batteries charged. Also, it can maintain any rechargeable 12V batteries.

  • The instructions are clear and the product is easy to install. When using the charge controller you can connect the kit permanent to the battery.

  • The order of connecting and disconnecting is important. It ensures safe and faults free operation.

  • Always follow the necessary safety instruction. Also, ensure correct polarity when connecting for safe and proper functioning.

  • This panel is so small you can use it as a portable solar station. It is still big enough though, to provide for a variety of your electric requirements.

Maintenance

Keep clean for high efficiency.

The only maintenance that you as a user have to do is making sure the cables are not damaged.

This is to ensure good working conditions.

Cleaning the surface of the 10 watt solar panel is also very important. Use a damp cloth to perform this duty.

A dirty panel leads to a big drop inefficiency.

A professional person must perform all other maintenance functions.

To conclude

The 10 watt solar panel will top up your battery during all seasons with free solar energy.

The module is portable, low maintenance and lightweight.

It works great for the money.

You can click here to buy.
