Solar is a great alternative.

 The 1500 Watt Solar Panel to be used on sunny days

Eight 195-watt panels to produce 1500 Watts.

The 1500 Watt Solar Panel to be used for big money savings especially on clear sunny days.

These high-efficiency Monocrystalline solar cells ensure high performance of solar modules. It creates the greatest power output.

The ECO LLC 1500W 24V Complete Off Grid Solar  Kit also performs very well under low light, shady and cloudy conditions.

The system has the capability of withstanding heavy snowfalls

 Also strong wind loads.

The 1560 Watts 24Volts Monocrystalline solar panel has a wide variety of applications.

It is a complete 24 volts off-grid solar power kit.


Use it for charging a 24 volts battery bank and many DC/AC appliances.

You can click here to buy.

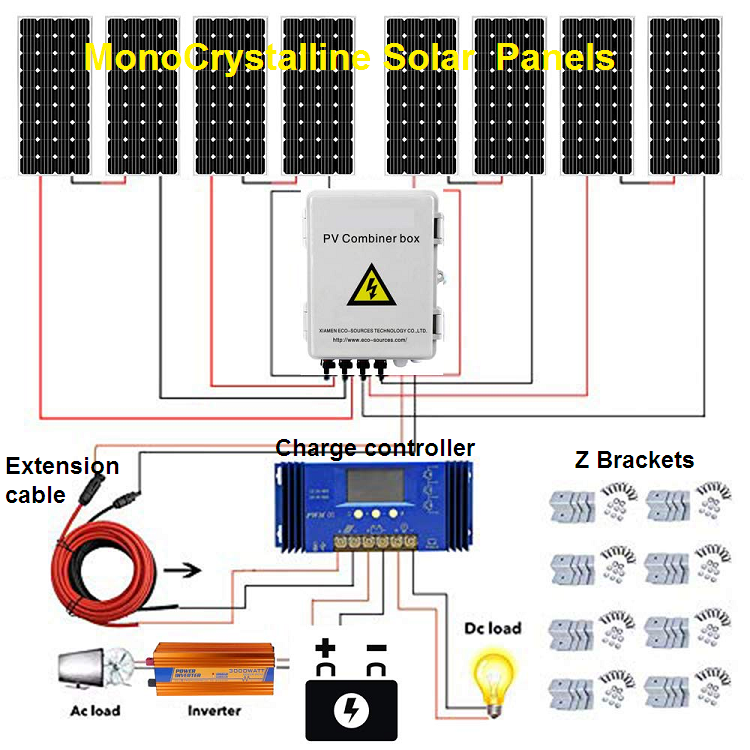

The 1500 watt solar panel kit comes with;

Eight pieces of Monocrystalline 195 watt solar panels. It can deliver a 1560 Watt peak output per hour.

1500 Watt Solar Panel Kit

A 60 Amp charge controller.

A 3000 Watt power inverter.

A 4 String Combiner Box.

MC4 solar cable.

Solar panel mounting brackets.

You have to buy batteries.

With the eight 195 watt solar panels, you get about 1560 Watts of power during peak time.

It is 195 watt X 8 panels X 6 hours of sunshine = 9360 Watt.

Take losses and non-peak performance into consideration and you can still get a

fair 8 Kilo Watt per day.

This is a large amount of cheap electricity for many years to come.

1500 Watt Solar Panel Specs per 195 Watt Module

Electrical

Maximum Power:

Open-Circuit Voltage (Voc):

Optimum Operating Voltage (Vmp):

Optimum Operating Current (Imp):

Short-Circuit Current (Isc):


195W.

21.6V.

18V.

9.02A.

10.83A.

Mechanical

Weight:

Dimensions:

Warranty

  • There is a 10-year product warranty term for monitoring hardware.
  •  Sunpower guarantees that your panels won’t lose more than 8% of their original DC power output in 25 years.

Applications

Residential.

Commersial.

Marine.

Dry camp and many more off-grid applications.



29.2lbs.

58.3x26.3x1.4inches.

The Corrosion-Resistant Aluminum Frame

195 Watt Aluminium Frame.

The panels come with heavy-duty aluminum frames.

This provides for extended outdoor use while allowing the panels to last for decades.

The panel can withstand high winds up to 2400Pa as well as heavy snow loads up to 5400Pa.

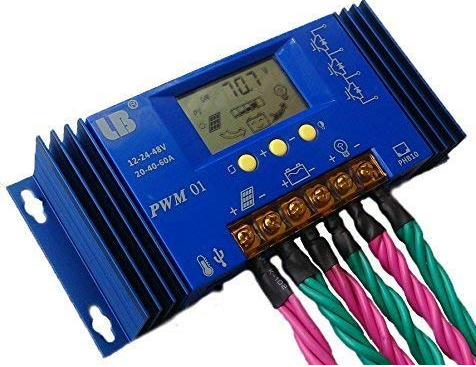

The 60 Amp charge controller

The 60 Amp charge controller

The 1500 watt solar panel uses a 60 Ampere Pulse Width Modulation (PWM) charge, controller.

The condition of the battery determines how the current tapers from the solar panels.

The PWM algorithm reduces the charging of the battery.

This is when it reaches the regulation set point.

This is to avoid heating and gassing of the battery.

Charging will continue to ensure the provision of the largest amount of energy in a short time.

The 60 Amp charge controller Specs

Maximum Charging Current:                           60A.

Rated Voltage:                                          12V/24V.

Overall dimension                                                                    195x82x42mm.

Grounding                                                                          Common negative.

Temp. compensation                                                                      -3mV/C/2V.

Working temperature                                                                    -35C - +55C.

Storage temperature                                                                    -35C - +80C.

Humidity                                                                                          ≤95% N.C.

Enclosure                                                                                                IP30.

Overall dimension                                                                    195x82x42mm.

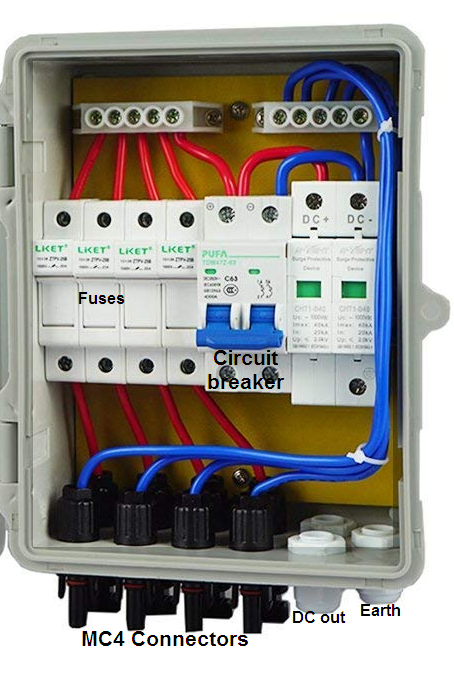

The 1500 Watt Solar Panel PV combiner box

1500 Watt Solar Panel Combiner Box.

The combiner box allows you to hook up many solar panels.

It comes with 4 string configuration and 10A circuit breakers

It includes high voltage protection and high voltage fuses. Also overvoltage and overcurrent protection. The lightning protection is done very well...

The 1500 watt solar panel combiner box also comes with anti-backflow diodes. Also anti-backflow and anti-reverse protection, cutout cable glands and safety labels.

The box is solid and of high quality. The wiring is neat and of a high standard, while everything is good and very well organized.

Specification for PV combiner box

Model:                                                    ECO—PV4

Number of Max. connection PV array:                   4

Max. input current of single PV array:               10A

Total input current of PV array:                           40A

Max Input Voltage of single PV array:               250V

Max Output Voltage:                                          250V

Protection Grade:                                              IP65

Operational Environment Temperature:  -30~+70

Relative Humidity:                                           0-95%

Cooling Method:                                 Natural Cooling

Surge Lightning Protection:                                 Yes

Dimension:      8.66″x6.69″x4.33″ (220*170*110mm)

Weight:                                                 4.41lbs(2kg)

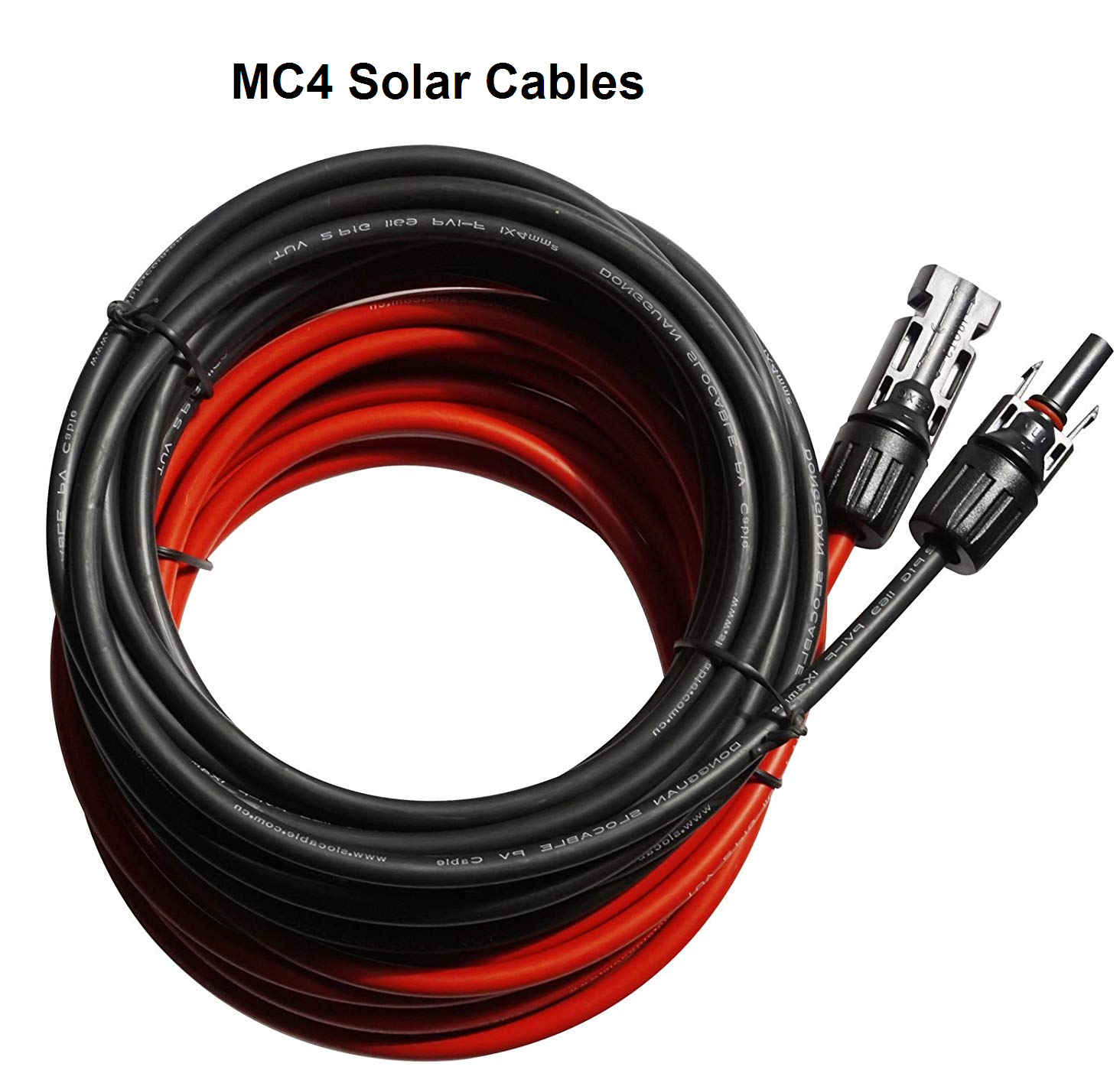

 The MC4 solar cable

MC4 Solar Cables.

The 1500 watt solar panel comes with solar cables with MC4 Male/Female connectors.

Setting it up is quick and easy.

Solar panel mounting brackets for the 1500 watt solar panel kit

The system comes with eight sets of Z-brackets.

The brackets make mounting of the panels easy, safe and secure.

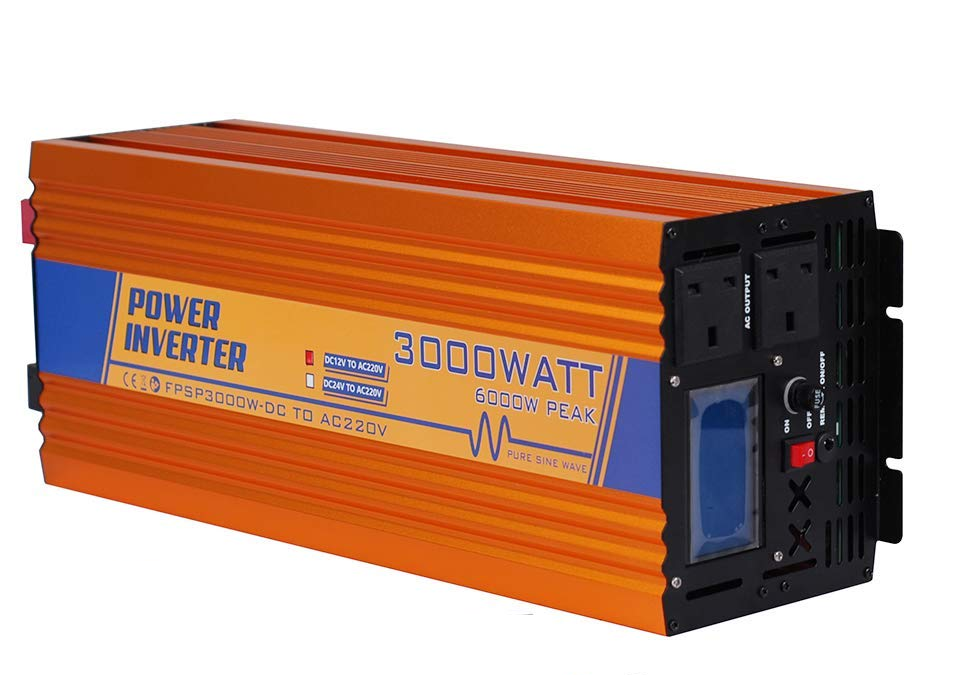

Inverter for the 1500 Watt Solar Panel

Inverter for the 1500 Watt Solar Panel

The solar module comes with a 3000 Watt power inverter.

The solar inverter converts the direct current output of a PV panel into AC (alternating). You can then feed it into the electrical network.

Remember with an inverter you have to give special attention  to the sizing thereof. You do not want to go too small. If you go too big though, you waste your money.

Advantages

  • The system is versatile and you can use it for a variety of applications.
  • This works for large off-grid systems such as remote cabins and farmhouses.

  • It can operate with off-grid residential and commercial rooftop systems.

  • The solar panel mounting brackets make it easy to install.

  • It minimizes power drop caused by shade and ensures excellent performance. Even in low-light and shady conditions.

  • The aluminum frames are corrosion-resistant.

  • The frames can withstand high winds (2400Pa) and snow loads (5400Pa).

  • This is one of the most affordable 1500 watt solar panel kits on the market.

  • It is easy to set up and install the 1500 watt solar module. It comes with ample cable.

  • The solar module provides benefits, which include quiet power production and grid independence.

  • This 1500 watt Solar Panel Kit is perfect for customers who want to reduce their carbon footprint...

Disadvantages

  • Some users may prefer an MPPT solar charge controller. The included charge controller is adequate though.

To Mention

  • Some people wonder if they need a charge controller. With low power panels, such as one to five-watt ones, you do not need a charge controller. With the bigger systems though, you cannot go without a controller
  • This is a complete solar system, you only need the batteries to be complete.

To conclude

The 1500 solar panel kit is a well-manufactured system. It is well built and easy to install.

The solar panel system is good for several power applications. You do not have to lay expensive cabling.

You can click here to buy.
