Solar is a great alternative.

The 600 watt solar panel is highly efficient

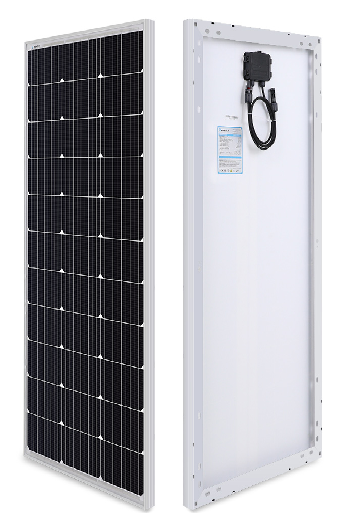

6 X 100 Watt Panels6 X 100 Watt Panels.

The 600 watt solar panel is a high performer.  Renogy manufactures these rigid and strong solar modules.

They call it the Renogy 600 Watt 24V Premium Kit. It is a High-Efficiency Monocrystalline Solar Panel.

The monocrystalline panels come with an efficiency of 21%.

The modules come with TPT (Tedlar Polyester Tedlar) back sheets. This is to ensure smooth performance over a long period.

They use heavy-duty anodized aluminum frames for solar panels. That provides for high-quality panel rigidity.

One can use these solar panels for many years. You will experience no faults, defects, or operating failures.

It comes with a superb warranty for up to 25 years.

On a sunny day with 7 hours of sunlight in mid-summer, you can bargain for the generation of about 3.6 Kilowatt.

That is 7 x 600 watt = 4.2 Kilowatt.

Now you allow for a loss of 15% and you get 4200 X 85/100 = 3.57 KiloWatt

Round it and you get a fair 3.6 Kilowatt.

The system comes with;

6 X 100W Mono Solar Panels.

1 x Rover Li 40A MPPT Charge Controller.

One Pair 20ft 10AWG Adaptor Kit.

A Pair 2ft 8AWG Fuse Cable.

One Pair 8ft 8AWG Tray Cable.

20A Solar Connectors.

One 40A ANL Fuse for controller and battery protection.

One Pair Solar MMF+FFM Branch Connectors.

A BT-1 Bluetooth Module.

Six Mounting Z Brackets (1 Set).

600 Watt Solar Panel Specs per 100 Watt Module

Electrical

One Renogy 100W Solar Panel;

Max Power:                                                                                                                             100Watt.

Largest System Voltage:                                                                                                   600V DC.

Open-Circuit Voltage (Voc):                                                                                                   21.6V.

Short-Circuit Current (Isc):                                                                                                   6.24A.

Optimum Operating Voltage (Vmp):                                                                                  17.9V.

Optimum Operating Current (Imp):                                                                                  5.72A.

Mechanical

Dimensions:                                                                                          42.2 X 19.6 X 1.38 inches.

Weight:                                                                                                                                       14.3lbs.

Type of solar panels:                                                                                          Monocrystalline.

Applications

RV;

Boat;

Camper;

Sheds;

Trailers;

Cabins;

Ground mount system next to an off-grid campsite;

Many other off-grid applications.

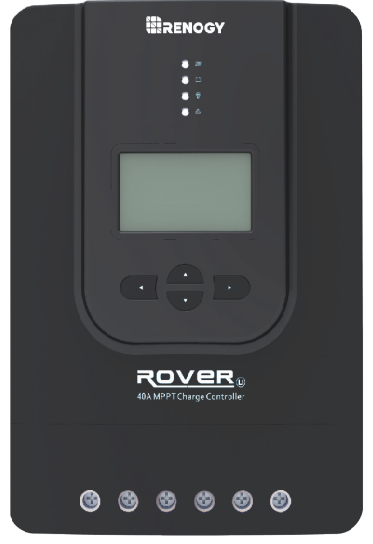

The Rover Li 40A MPPT Charge Controller

Charge ControllerCharge Controller.

The charge controller comes with multiphase synchronous rectification. Also, with maximum power point tracking technologies. This is to increase the charging efficiency.

Operation of the 600 watt solar panel MPPT charge controller

The MPPT charge controller can pair non-matching voltages from panels and batteries.

These controllers adjust their input. That is to bring in the greatest power possible from your solar array. It also varies its output power to match the battery that you attach to the system.

The MPPT controllers are thus much more efficient. This is than the Pulse Width Modulation controllers.

It utilizes the power of your solar panels more to charge a battery.

The controller has a peak conversion efficiency of 98% and a high tracking efficiency of 99%.

The Rover Li 40A MPPT Charge Controller Specs

Electrical

Rated Battery Current:                                                                                                              40A.

Max. PV Input Short Current:                                                                                                    50A.

Max Solar Input Voltage:                                                                                                   100VDC.

Discharge circuit voltage drop:                                                                                        ≤ 0.15V.

Max Terminal Size:                                                                                                                     AWG.

Rated Load Current:                                                                                                                   20A.

Max. Battery Voltage:                                                                                                                 32V.

Charge circuit voltage drop:                                                                                             ≤ 0.26V.

Working Temperature:                                                                                         -35°C to +45°C.

Rated Load Current:                                                                                            10% to 90% NC.

Mechanical

Omit Dimension:                                                                                      9.37 x 6.81 x 2.85 inch.

Net Weight:                                                                                                                                4.41 lb.

Connecting the charge controller

Remember when connecting it is important to first connect the battery. Then connect the load and last the 600 watt solar panel itself.

This is to ensure safe operation and safeguard equipment against overload.

One should never connect the solar panel to the controller without a battery.

It is good practice to install the charge controller indoors to keep it well ventilated, cool, and dry. Keep the controller away from damp.

It is better to install the charge controller indoors in a well-ventilated, cool, and dry place.

Do not allow water to enter the controller.

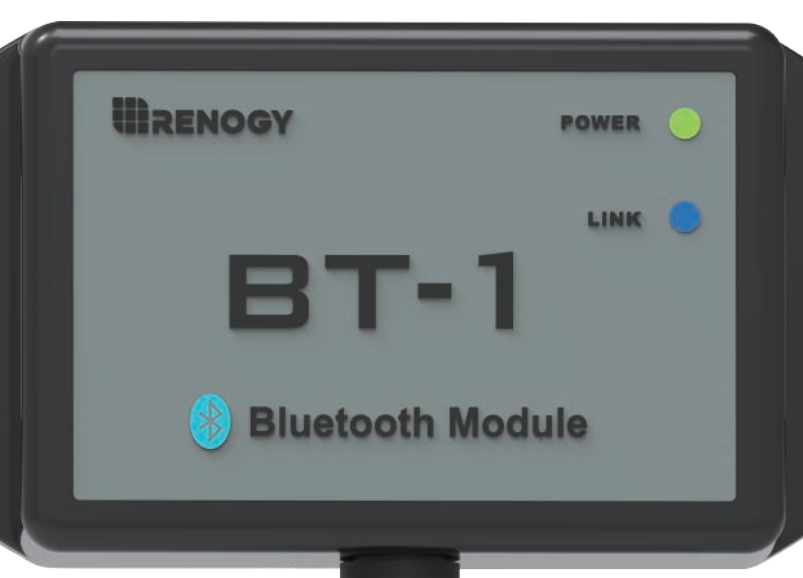

BT-1 Bluetooth Module

Bluetooth ModuleBluetooth Module.

Use the  BT-1 Bluetooth Module to track and control the solar charge controller.

It is easy to connect to a smartphone App, Renogy BT/Renogy DC Home, to keep track of the system.

600 Watt solar panel Bluetooth Module Specs

Input Voltage:                                                                                                                                    5V.

Communication Range:                                                                                                           ≤82ft.

Compatible Models:                                               All Renogy Controllers with RJ12 port.

Operation Temperature:                                                               -20°C~85°C (-4°F to 185°F).

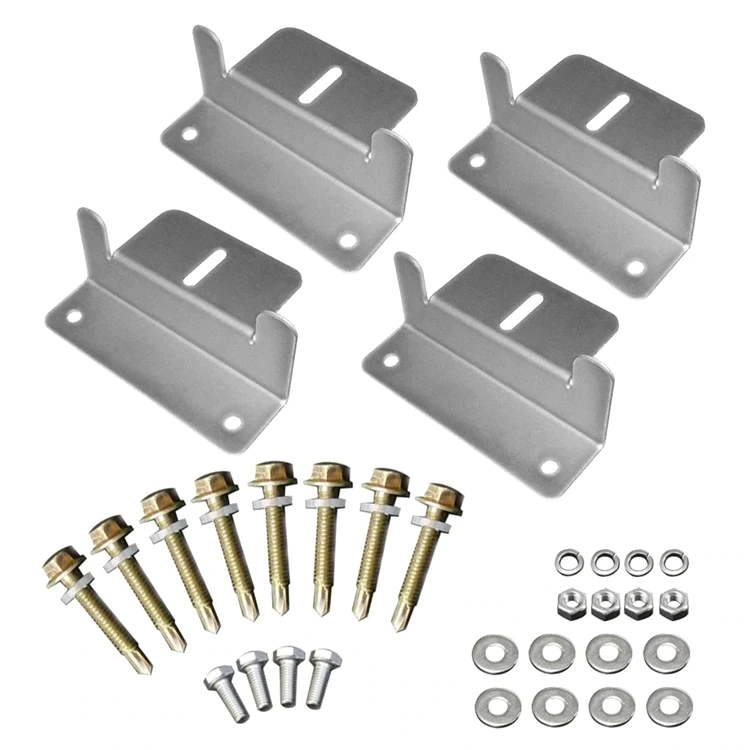

Mounting Z-Brackets(6 Sets)

Z-BracketsZ-Brackets.

A set of mounting z-brackets comes with 8 long cap bolts and 4 short bolts. Also 4 z-shape solar panel brackets and 4 nuts.

The600 watt solar panel z-brackets are;

Lightweight.

Aluminum and corrosion-free.

Easy to use for installation, and come with a 1-year material warranty.

The Corrosion-Resistant Aluminum Frame

The 100-watt solar modules come with a corrosion-resistant aluminum frame. This is for extended outdoor use.

These are heavy-duty frames allowing the panels to last for decades.

The junction box

The IP 65 rated junction box is waterproof.

Do not worry about rainy and misty weather. The 600W solar panel will perform well under these harsh conditions.

Advantages

  • The whole system is easy to assemble and install.

  • The Monocrystalline panels come with a high efficiency of 21%.

  • The use of bypass diodes minimizes power drop caused by shade. It ensures high power output during low-light conditions.

  • The manufacturer uses extra-thick anti-reflective, high transparency, low iron tempered glass. That gives enhanced stiffness and high impact resistance.

  • TPT back sheets ensure smooth performance for years to come.

  • Pre-drilled holes on the back of the panel allow for fast and secure mounting.

  • EL testing of the solar modules ensures that no hot-spot heating occurs.

  • The system works with a 4-Stage battery charging process. This is to ensure rapid, efficient, and safe battery charging.

  • The system is RS-232 port compatible. This is to provide for extra features.

  • With the BT-1 Bluetooth module and DC home App, remote monitoring is possible.

  • They use solar connectors, an inline fuse, and an ANL fuse. These components protect the charge controller and battery.

To mention

The 600 watt solar panel kit is high quality, and the panels are efficient, even on cloudy days.

The charge controller comes with many useful displays to track everything important.

Warranty

It comes with a 25-year power output warranty:

5 Year/95% efficiency rate.

10 Year/90% efficiency rate.

25 Year/80% efficiency rate.

The 600 watt solar panel kit also comes with a 5-year material and workmanship warranty.

Accessories come with a 1-year material warranty.

In Conclusion

The 600 watt solar panel is a high-performance and well-manufactured solar module. Another quality solar product from Renogy.
